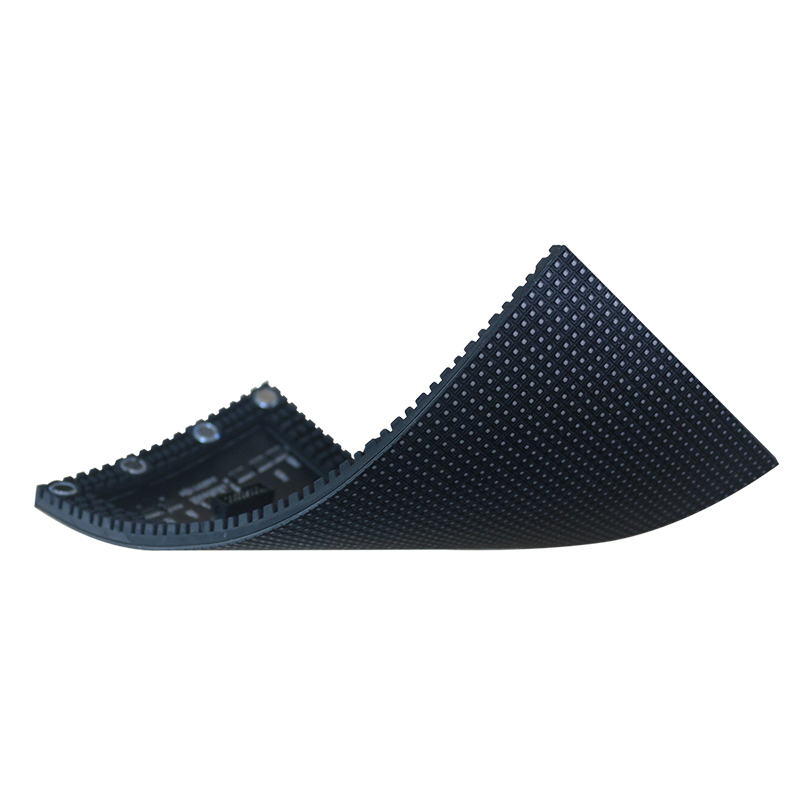

F Series

Flexible LED display modules, ingeniously designed from the concept of flexible light strips, create bendable LED modules. These modules can be combined into curved, cylindrical, and even curved displays to suit installation requirements, representing a technological advancement with outstanding features and significant advancements. Compared to traditional flat, rigid modules, they incorporate flexibility and wide-angle design concepts, breaking away from traditional technical systems and showcasing flexible and varied curves. This "softness" conquers a variety of artistic forms, creating a captivating visual experience for viewers and presenting a vibrant and diverse visual experience.

Chat Now Message Email

Main process characteristics

The module is designed with a standardized size of 320X160mm, low current, low heat, high contrast and high refresh rate;
The XR soft module series is suitable for cylindrical screens, spiral screens, wave screens, ribbon screens and other artistic shapes, and is suitable for application scenarios such as planning halls, science and technology museums, urban planning halls, art galleries, museums, creative centers, etc.
The box structure adopts high-strength sheet metal sandblasted iron box and unique segmented splicing process, which effectively reduces the screen splicing gap;
The module is installed by strong magnetic adsorption, and the height of the magnet can be adjusted to improve the flatness of the entire screen. The power supply is front-maintained, and special scenes can be installed from the front. Specific tools can be used to meet the requirements of front maintenance.

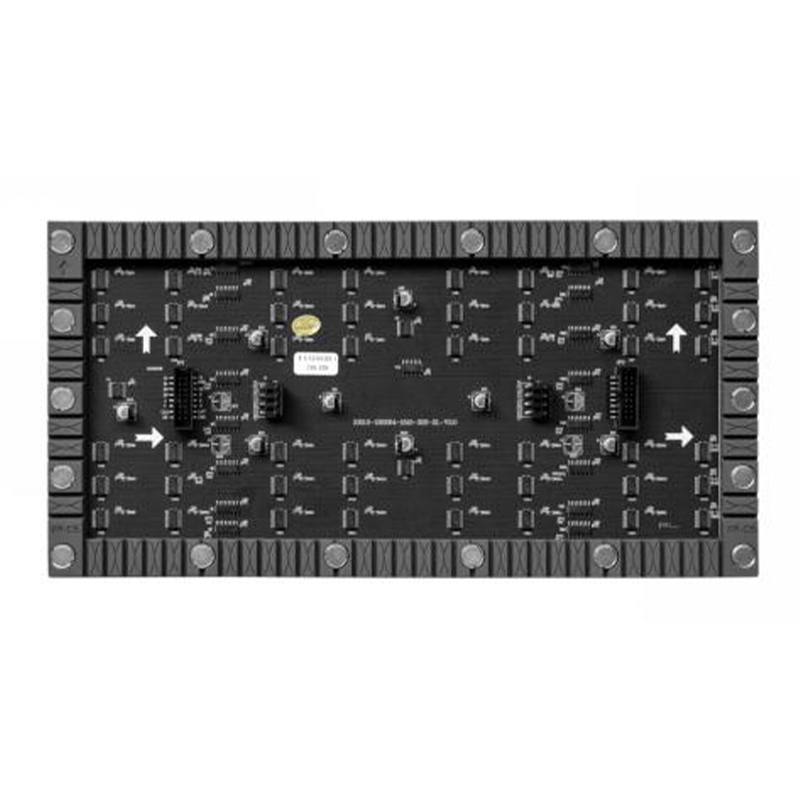

The PCB board is made of flexible soft board and the bottom shell is made of silicone material, which has good flexibility and eliminates static electricity:
The module is only 8.6mm thick, with an ultra-thin design and takes up little space.

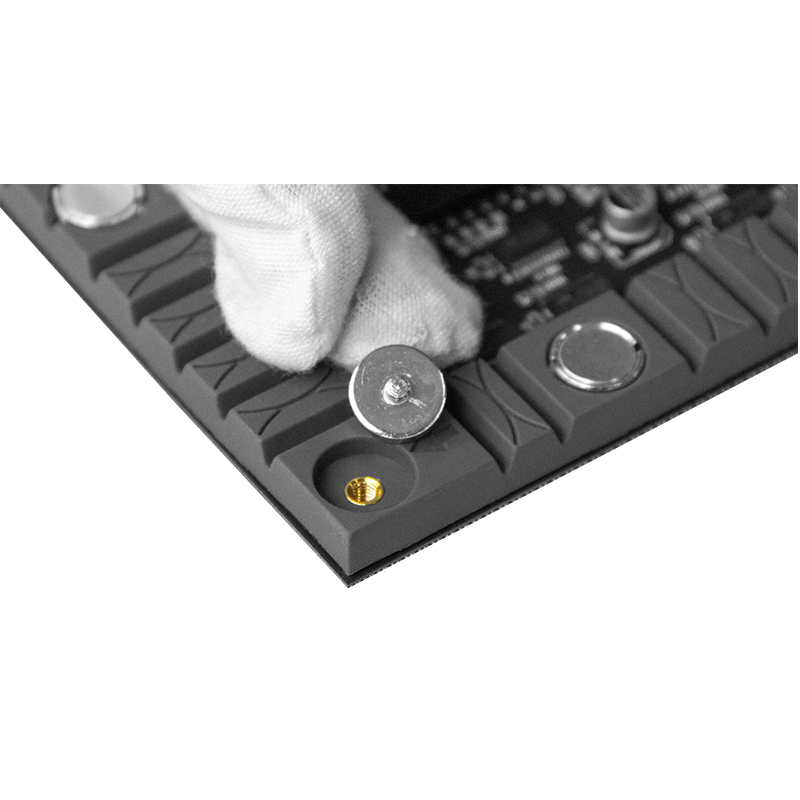

The PCB board uses copper pillar welding and adhesive backing to form a lockable iron base with the bottom shell, making the module more solid and reliable;

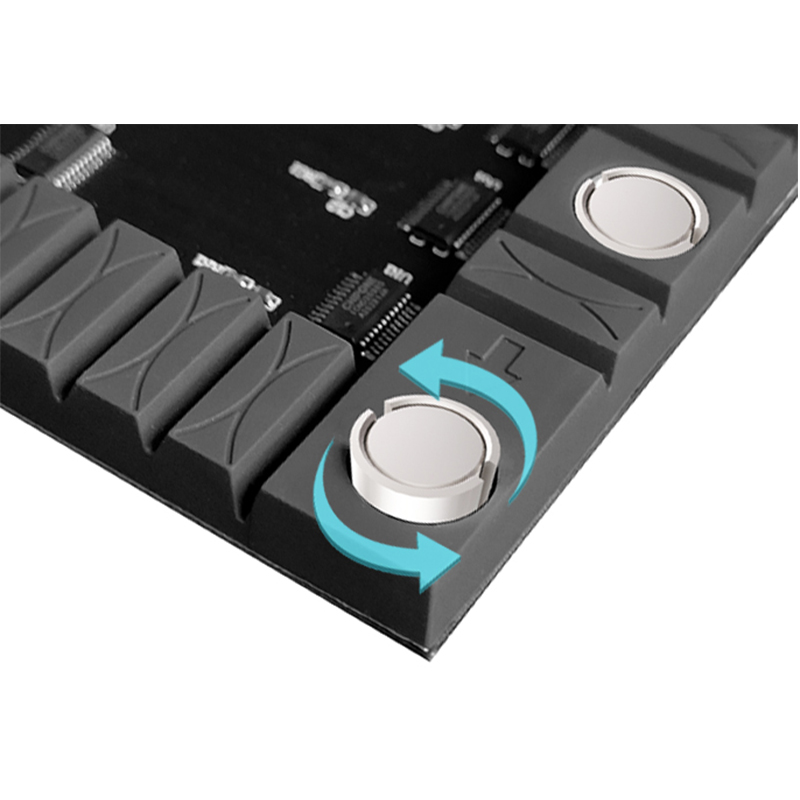

The single board is equipped with 18 magnets, each with a magnetic content of 2000 GS, which solves the problems of debonding and warping of ordinary soft modules, effectively improving the flatness and performance of the screen.

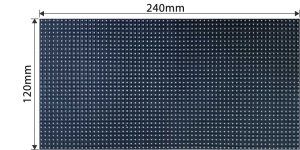

Dimension(P1.875)

Dimension(P1

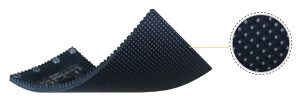

Optional GOB processing

Optional-GOB-processing

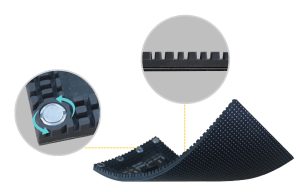

Silicone bottom shell

Magnetics

Stronger adsorption, convenient and easy installation Ensure the flatness of the screen

Silicone-bottom-shell

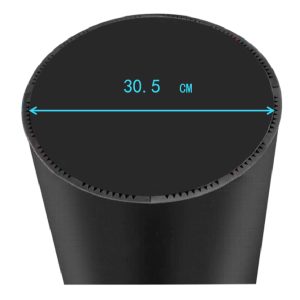

Customized Service

High end customization, any curved or cylindrical screen can be assembled according to demands.
Ultra light and ultra-thin, extremely flexible, with 4 240X120m module splicing columns Inner diameter ≤ 30.5cm

Customized-Service

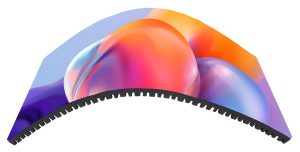

Seamless Splicing

Unique splicing processing, single point maintenance, effectively reducing screen splicing gaps, splicing flatness ≤ 0.1mm, achieving perfect splicing
Easy to fit various surfaces, the splicing surface is smooth and free of bumps and bumps

Seamless-Splicing

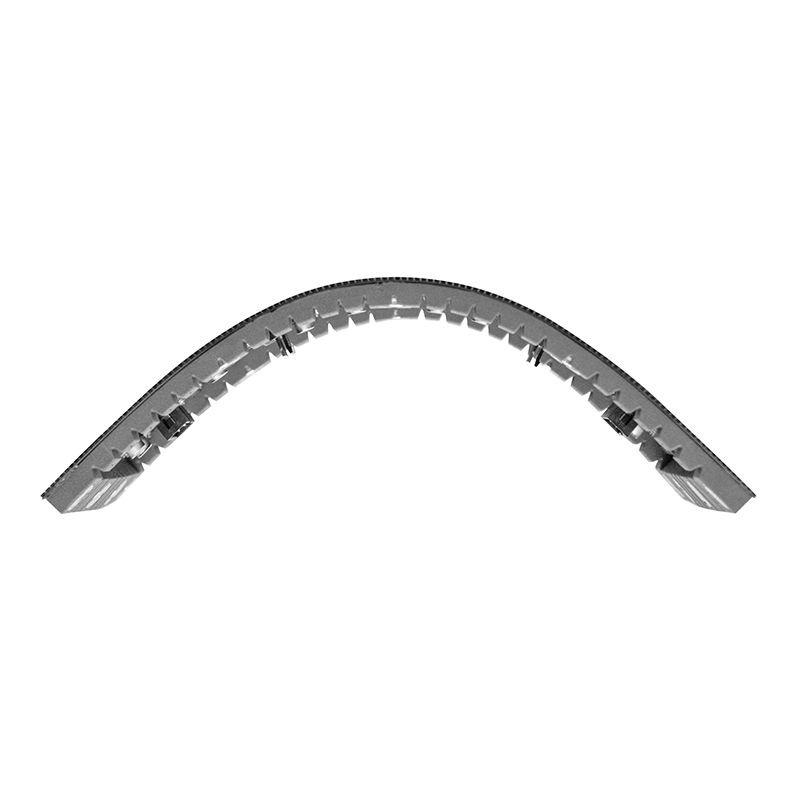

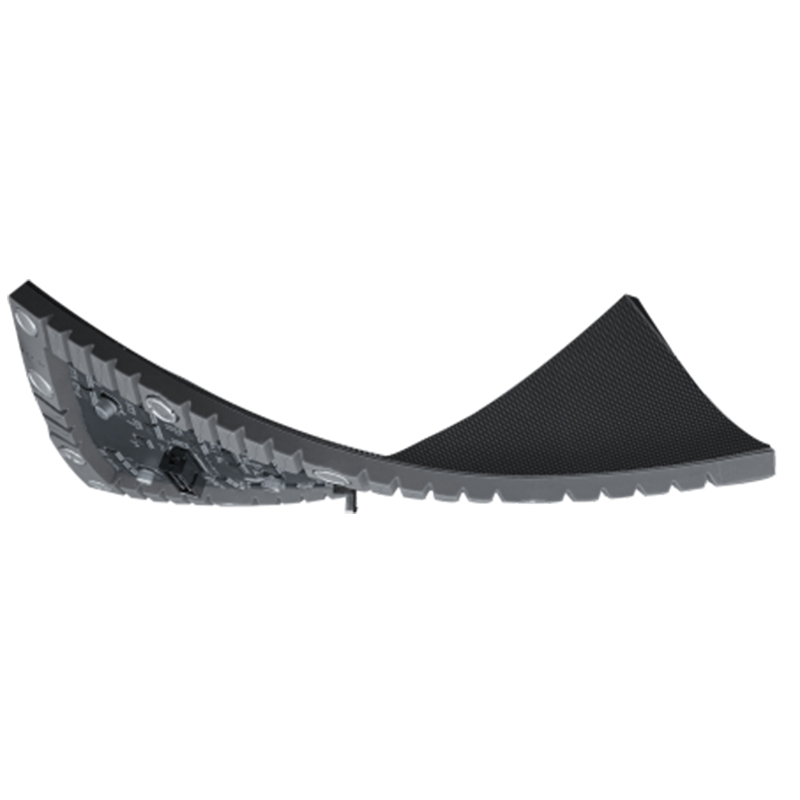

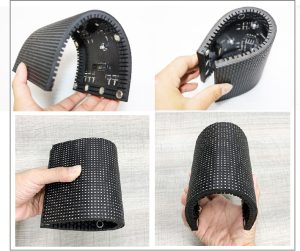

More flexible

Capable of bending and folding at large angles, meeting special styling needs such as curved surfaces, cylinders, and spherical shapes
Good ductility, capable of lifting, seating, hanging, etc., to maximize compliance with on-site installation requirements

More-flexible

Super wide viewing angle

Perfect presentation of images from any angle

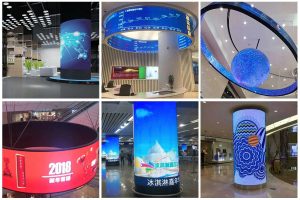

Cases

Pixel Pitch	P1.25	P1.53	P1.86	P1.875	P2	P2.5	P3	P4
LED Type	SMD1010	SMD1010	SMD1515	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020
Physical Density(dots/㎡)	64000	422500	288906	284444	250000	160000	11111	62500
Module Resolution	192X96	208X104	172X86	128X84	120X60	96X48	80X40	60X30/6
Module Size(WXH)	240X120	320X160	320X160	240X120	240X120	240X120	240X120	240X120
Cabinet Size(mm)	960X960	960X960	960X960	960X960	960X960	96X960	960X960	960X960
Cabinet Materials	Iron	Iron	Iron	Iron	Iron	Iron	lron	Iron
Brightness(Nits)	600	600	600	600	700	700	700	700
Color Temperature(K)	5000-12000 Optional
Viewing Angle(V/H)	160°/160°

Viewing Distance	1.25-50m	1.25-50m	1.25-50m	1.25-50m	1.25-50m	1.25-50m	1.25-50m	1.25-50
Contrast Ratio	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1	10000
Frame Frequency	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Scan Mode	1/64Scan	1/52 Scan	1/43 Scan	1/ 32 Scan	1/30 Scan	1/24 Scan	1/20 Soan	1/16 Sca
Grey Level	16bit	16bit	16bit	16bit	16bit	16bit	16bit	16bit
Refresh rate(Hz)	3840	3840	3840	3840	3840	3840	3840	3840
Max Power Consumption(W/㎡)	600	600	600	600	600	600	600	600
Ave, Power Consumption(W/㎡)	80-150	80-150	80-150	80-150	80-150	80-150	80-150	80-150
Protection grade	IP31	IP31	IP31	IP31	IP31	IP31	IP31	IP31
Input Power	AC90-264V,47-63Hz

Working Temp/Humidity(℃/RH)	-20~60℃/10%~85%
Storage Temp/Humidity(℃/RH)	-20~60℃/10%~85%
Cert.	CCC/CE/RoHS/FCC/CB/TUV/IEC
