G Series

Chat Now Message Email

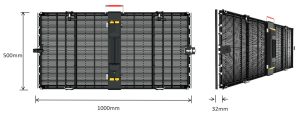

Dimension

1000 X 500 Cabinet Size
Support size customization to meet different needs

Dimension

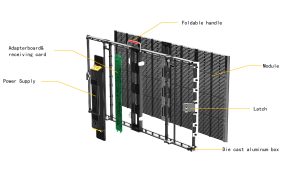

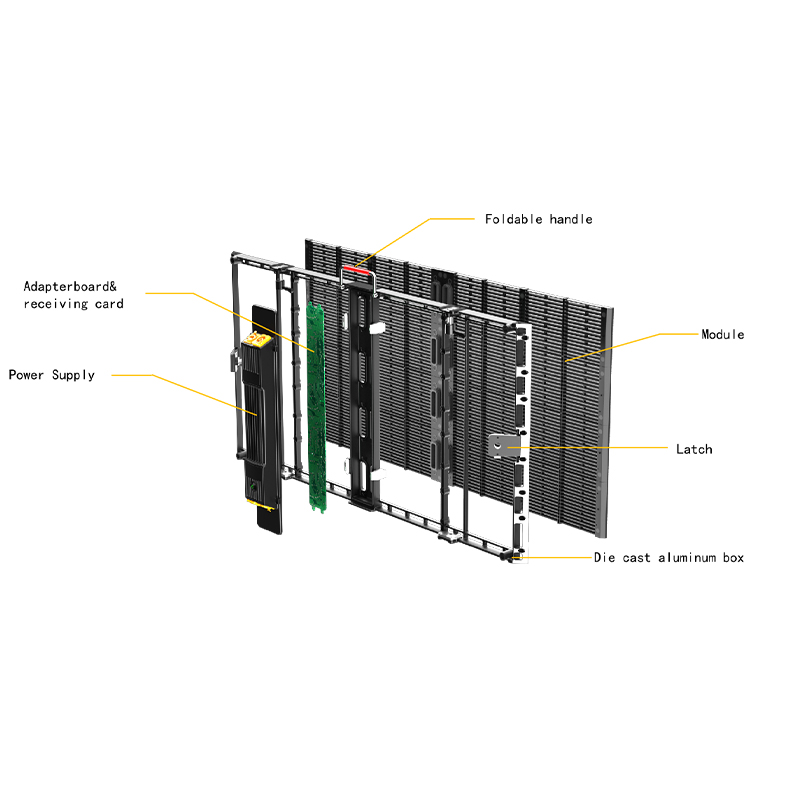

Product Details

Product-Details

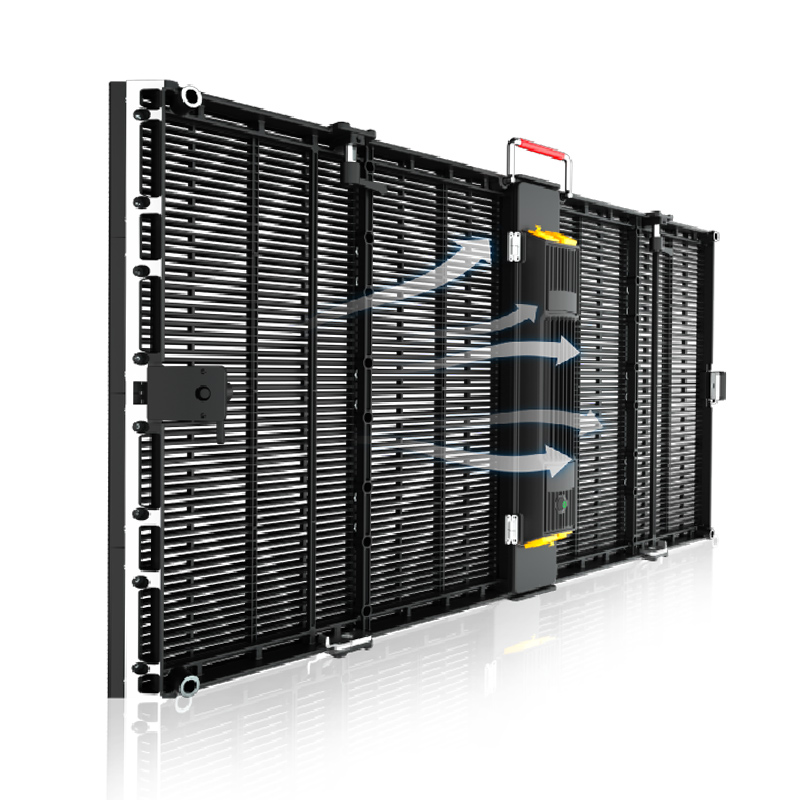

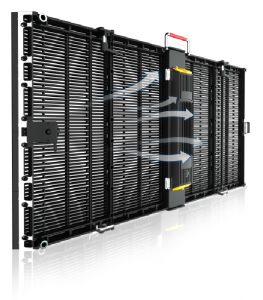

High Transparency

Refined and simplified structural design, with a transparency rate of 70% -85%
High transparency, no effecting lighting and visibility
High ventilation, natural convection heat dissipation, no fan required

High-Transparency

seamless splicing

Seamless splicing of various shapes through quick lock buckle connection
Modular design, modules and light strips can be independently disassembled for quick maintenance

160°Super wide viewing angle

Perfect presentation of images from any angle

specifications	P3.91-7.81
Pixel spacing (mm)	3.91(about) 7.82(up and down)
LED Type	SMD1921
Physical density (Dot/sqm)	32768
Drive mode	8-16
Brightness (cd/m)	4500-5500
Transparency	70%-85%
Refresh rate(Hz)	3840
Protection level	IP65
Brightness adjustment	Level 256
Viewing angle(V/H)	160°/160°
Best Viewing Distance	4m-50m
Power supply requirements	AC220-240V

Max. power consumption(W/sqm)	800
Avg.power consumption (W/sqm)	150-250
Cabinet size(mm)	1000X500X32
Cabinet weight(kg)	8
Installation method	Seat installation and lifting
Maintenance	Front/rear
Power input	AC90-264V.47-63Hz
Wroking temperature/humidity(C/RH)	-20~60℃/10%~85%
Storage temperature/humidity(°C/RH)	-20~60℃/10%~85%
Certificatiom	CCC/CE/RoHS/FCC/CB/TUV/IEC
