G-T4 Series

G-T4 Series

Chat Now Message Email

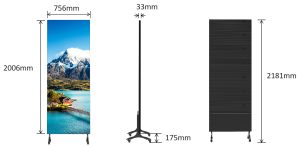

Dimension

Delicate picture quality

High brightness , high contrast ratio and high refresh rate, delicate picture quality, vivid display performance。

160°Large viewing angle

Perfect performance from different viewing angle。

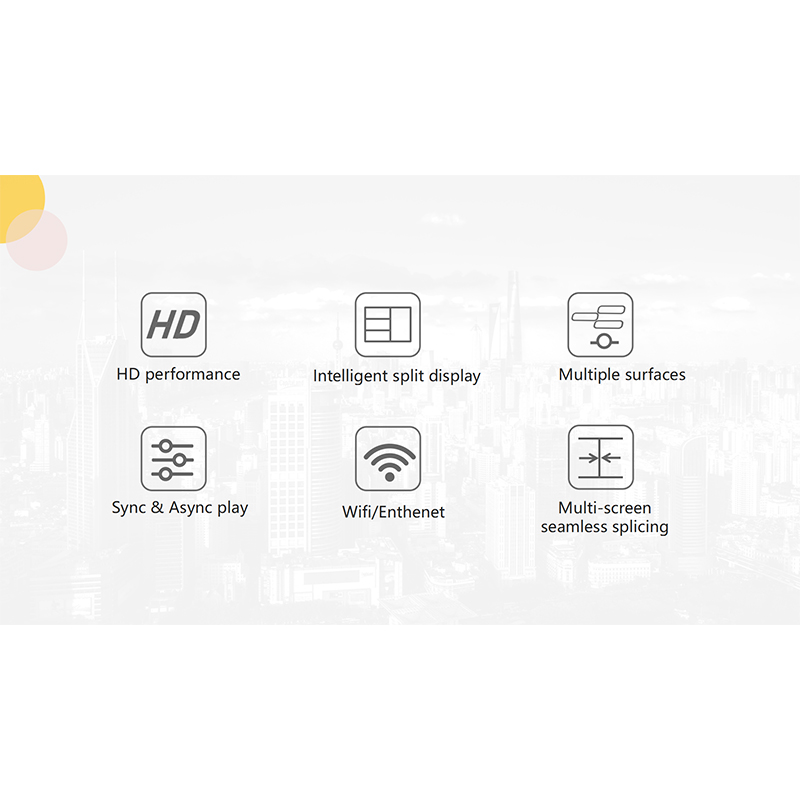

Multiple control modes

Support multiple playback methods to adapt to different scenes。
Support Sync and Async play。
Multiple surfaces 。

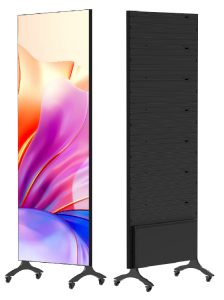

Multiple-control-modes

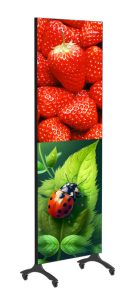

Intelligent split display window

Support multi-window to display differnt contents at the same time 。

Intelligent-split-display-window

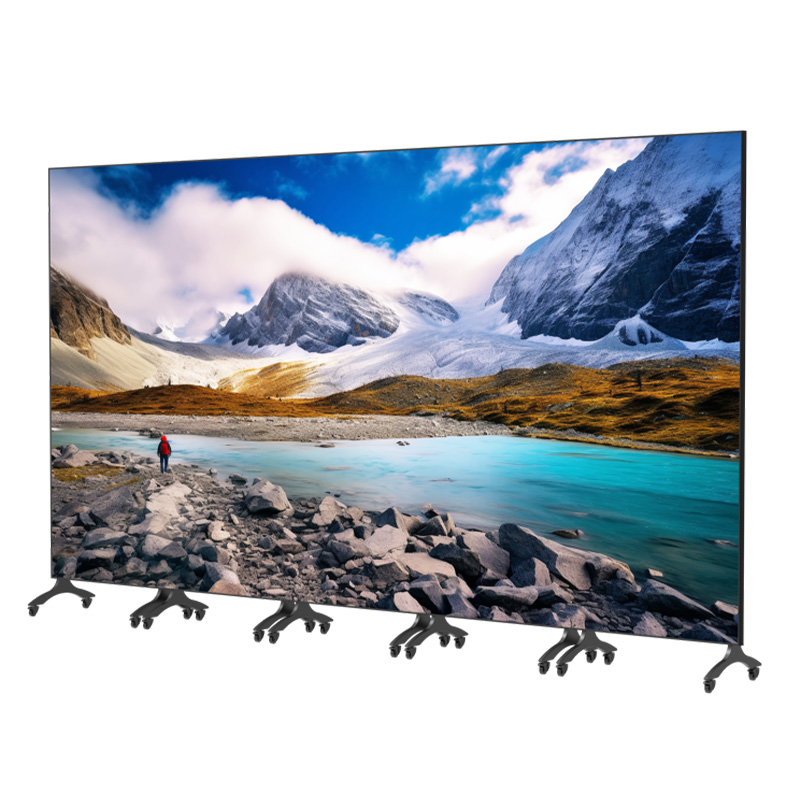

Multi-screen seamless splicing

Support multile screens splicing without gap。

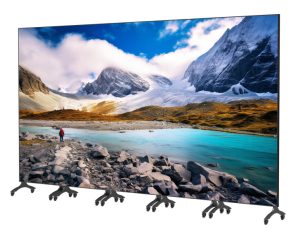

Multi-screen-seamless--splicing

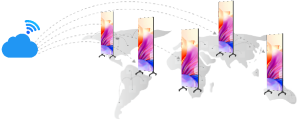

Intelligent cluster management and control

Intelligent cloud play & control for multiple screens anytime and aywhere, Centralized control。

Intelligent cluster management and control

Multiple installation modes

Multiple screen splicing

Multiple-screen-splicing

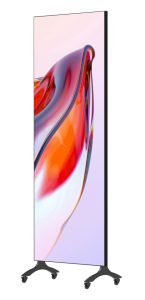

Stand on floor

Stand-on-floor

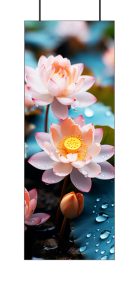

Hoisting

Application scenes

Application-scenes

Pixel	P1.25	P1.5625	P1.95	P2.5	P2.604	P2.976	P3.91
LED type	SMD1010(GOB)	SMD1212(GOB)	SMD1515	SMD1515	SMD1515	SMD1515	SMD1515
Physical Density(Dots/mr)	640000	409600	262144	160000	147456	112896	65536
Module resolution(dots)	600X1600	480X1280	384X1024	300X800	288X768	252X672	192X512
Module size(mm)	250X250	250X250	250X250	250X250	250X250	250X250	250X250
Display dimension(mm)	750X2000X33	750X2000X33	750X2000X33	750X2000X33	750X2000X33	750X2000X33	750X2000X33
Dimensions(mm)	756X2181X33	756X2181X33	756X2181X33	756X2181X33	756X2181X33	756X2181X33	756X2181X33
Weight(kg)	39.6	39.6	39.6	39.6	39.6	39.6	39.6
Maintenance mode	Front	Front	Front	Front	Front	Front	Front
Materials	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum

Brightness(Nits)	600	600	800	800	800	800	1000
Color temp(K)	3200-9300	3200-9300	3200-9300	3200-9300	3200-9300	3200-9300	3200-9300
Viewing angle(V/H)	160°/160*	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Brightness/color uniformity	≥97%	≥97%	≥97%	297%	≥97%	≥97%	≥97%
Contrast ratio	15000:1	15000:1	15000:1	15000:1	15000:1	15000:1	15000:1
Frame Frequency	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Scan mode	Constant,1/50Scan	Constant,1/40scan	Constant,1/32scan	Constant,1/25scan	Constant,1/32scan	Constant,1/28scan	Constant,1/16scan
Gray scale(bit)	14/16 optional	14/16 optional	14/16 optional	14/16 optional	14/16 optional	14/16 optional	14/16 optional
Refresh rate(Hz)	3840	3840	3840	3840	3840	3840	3840
Max consumption(W/)	650	650	650	650	650	650	650

Average consumption(W/m)	100-200	100-200	100-200	100-200	100-200	100-200	100-200
Powervoltage range	AC90-264V,47-63Hz
Working temp/humidity(℃/RH)	-20~60℃/10%~85%
Stock temp/humidity(℃/RH)	-20~60℃/10%~85%
Ceitificates	CCC/CE/RoHS/FCC/CB/TUV/IEC/BIS
