G-X4 Series

Smart-Split-Screen-Multi-Use-in-One-Screen

G-X4 Series

Chat Now Message Email

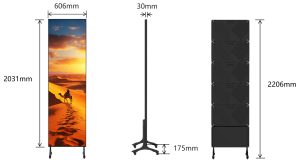

Dimensio

Wide color gamut

Professional color management techniques， rich color layers and more natural color transitions.

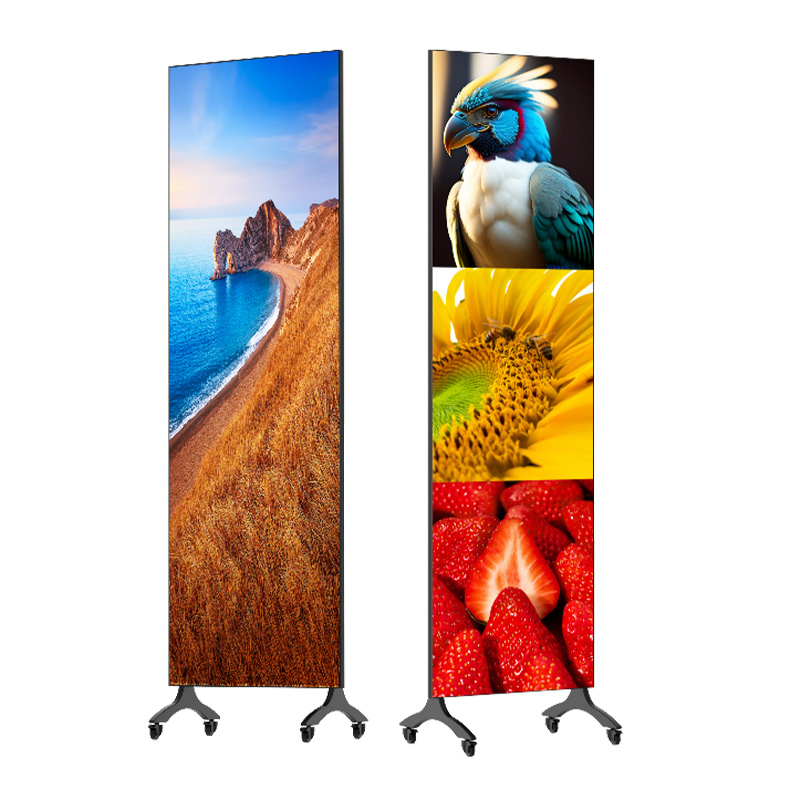

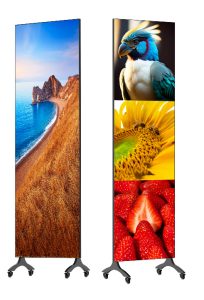

Smart Split-Screen Multi-Use in One Screen

Multiple split-screen modes, with video and images/text playing synchronously, meeting various needs。

Smart-Split-Screen-Multi-Use-in-One-Screen

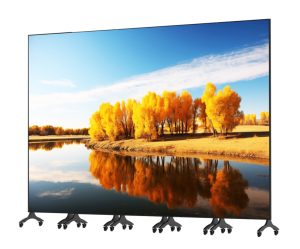

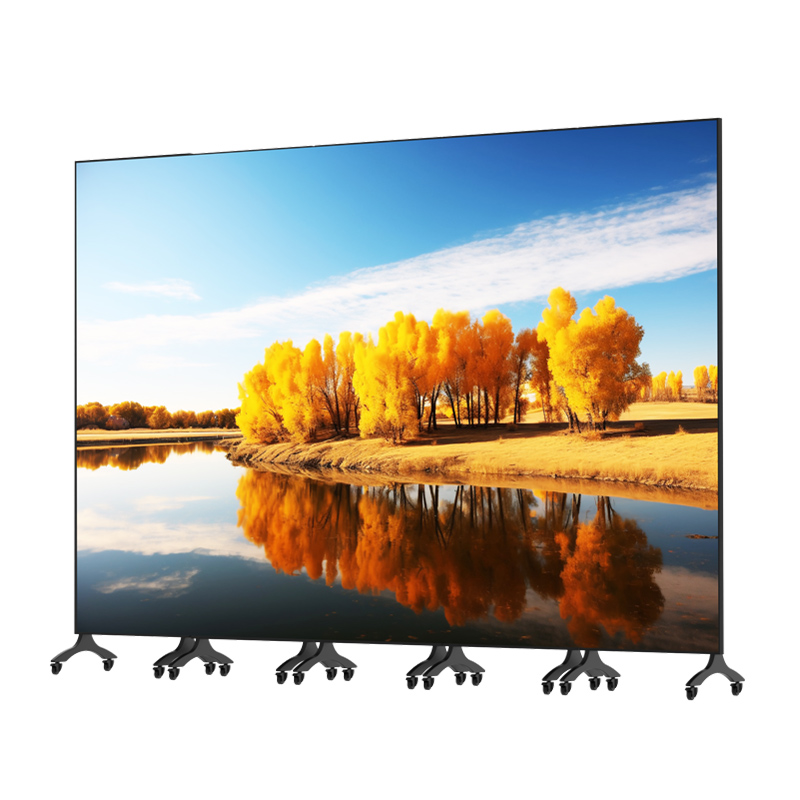

Multi-Screen Cascade Connection

Support multile screens splicing without gap.

Multi-Screen-Cascade-Connection

Smart Cluster Management

Supports remote smart monitoring, remote and scheduled on/off control, and wireless remote interaction via mobile phones and smart devices, offering ultimate control anytime, anywhere.

Smart Cluster Management

High brightness and high gray

High brightness, high grayscale, high refresh rate, no scanning line for taking photos.

170°Super wide viewing angle

Perfect performance from different viewing angle

Application scenes

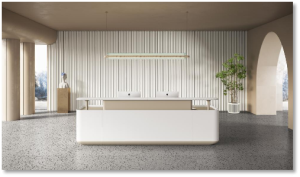

Enterprise

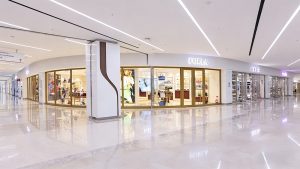

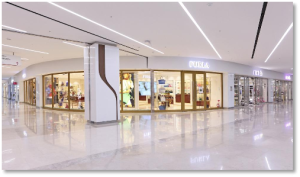

Shopping mall

Hotel

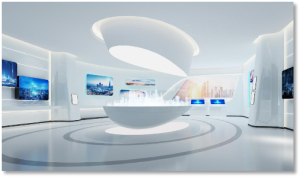

Showroom

Pixel Pitch	P0.9375	P1.25	P1.56	P1.875	P2.5
LED type	COB	SMD1010(COB)	SMD1010/1212(COB)	SMD1010/1515(GOB)	SMD1010/1515
Physical Density(Dots/㎡)	1137778	640000	409600	284444	160000
Screen dimension(mm)	600X2025X30	600X2025X30	600X2025X30	600X2025X30	600X2025X30
Dimensions(mm)	606X2206X30	606X2206X30	606X2206X30	606X2206X30	606X2206X30
Physical Density (dots)	640X2160	480X1620	384X1296	320X1080	240X810
Screen weight(kg)	37	37	37	37	37
Maintenance mode	Front	Front	Front	Front	Front
Materials	Die Cast Aluminum	Die Cast Aluminum	Die Cast Aluminum	Die Cast Aluminum	Die Cast Aluminum
Brightness(Nits)	≥600	≥600	≥600	≥600	≥600

Color temperature(K)	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional
Viewing angle(H/V)	170°/170°	170°/170°	170°/170°	170°/170°	170°/170°
Luminance/Color Uniformity	≥99.8%	≥99.8%	≥99.8%	≥99.8%	≥99.8%
Constrast ratio	10000:1	10000:1	10000:1	10000:1	10000:1
Frame Frequency	50/60	50/60	50/60	50/60	50/60
Scan mode	1/60 scan	1/45 scan	1/48 scan	1/45 scan	1/45 scan
Gray scale	16bit	16bit	16bit	16bit	16bit
Refresh rate(Hz)	3840	3840	3840	3840	3840
Max consumption(W/m)	420	420	420	420	420
Avg.consumption(W/m)	100-200	100-200	100-200	100-200	100-200

Control mode	USB/LAN/WIFI/4G cloud(Optional）
Poewr voltage rane	AC90-264V,47-63Hz
Working temp/Humidity(℃/RH)	-20~60℃/10%~85%
Stock temp/Humidity(℃/RH)	-20~60℃/10%~85%
Standard	CCC/CE/RoHS/FCC/CB/TUV/IEC/BIS
