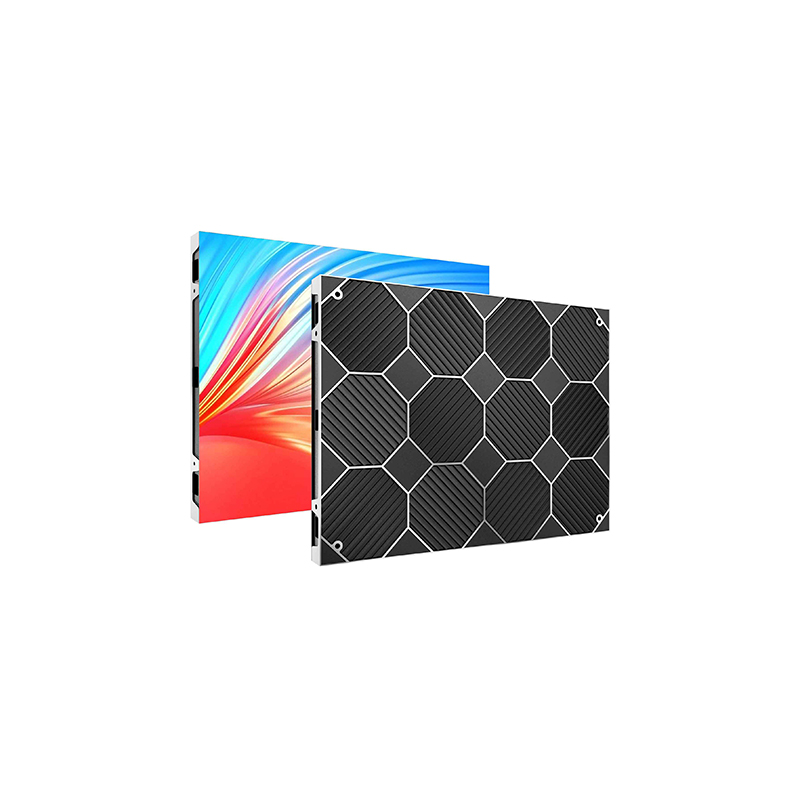

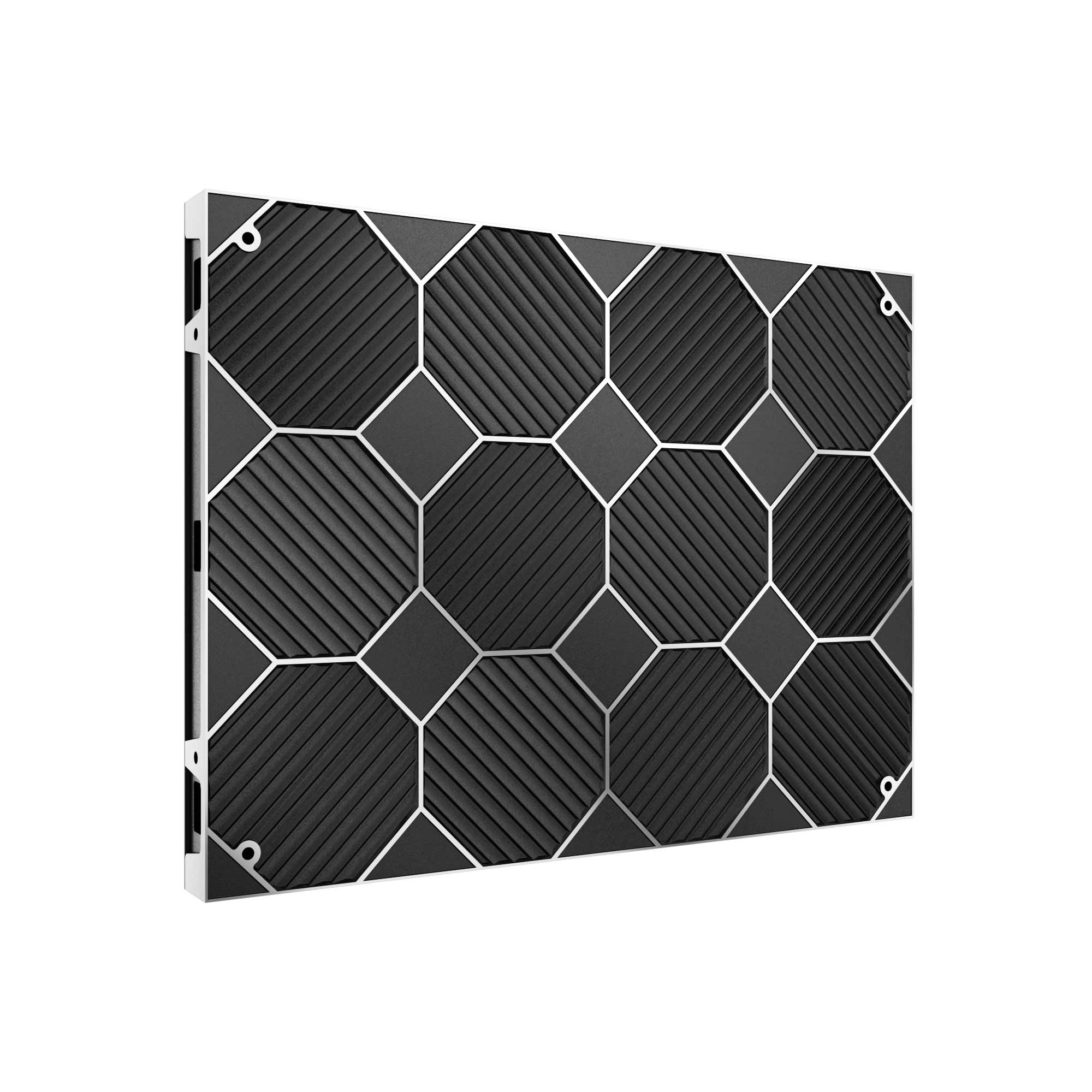

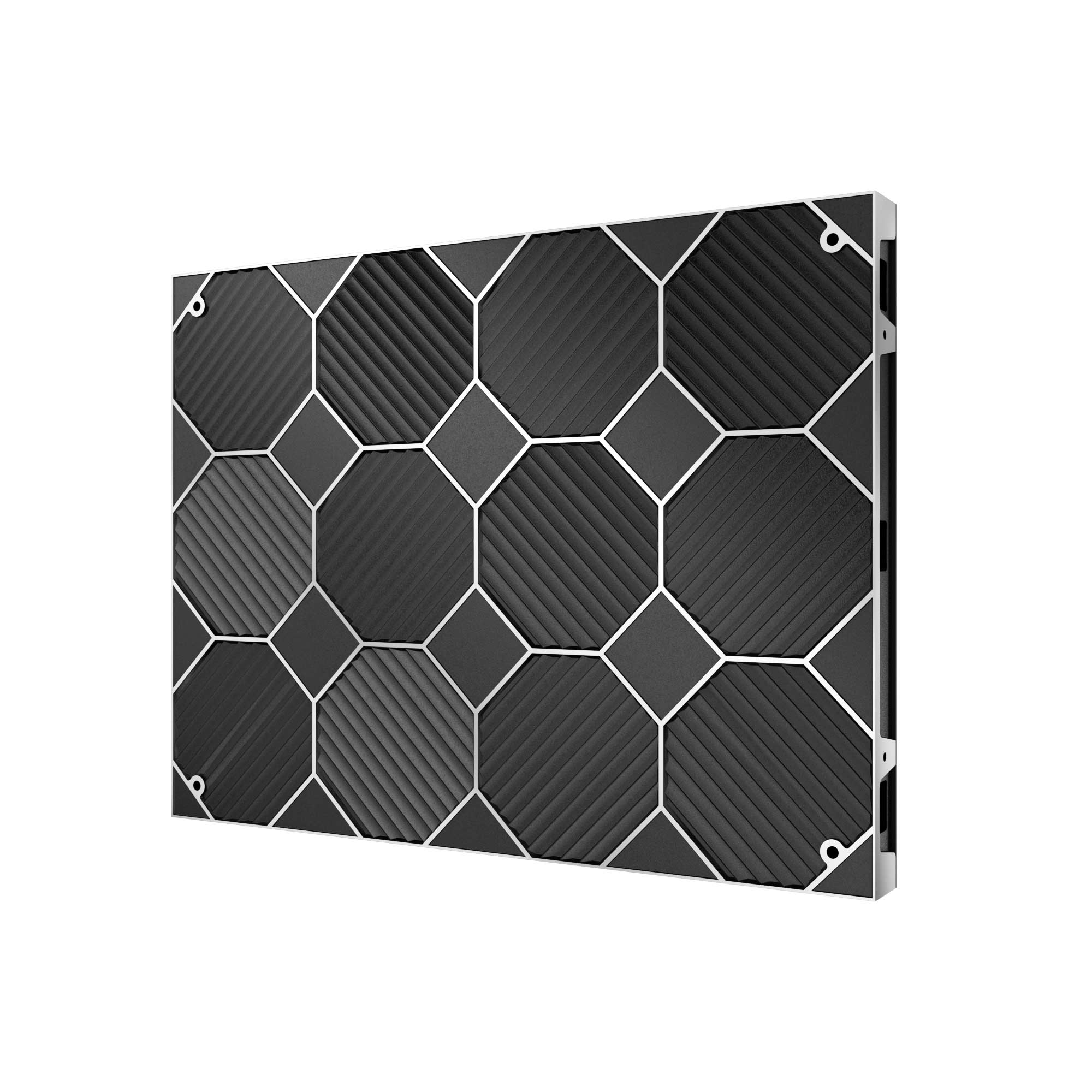

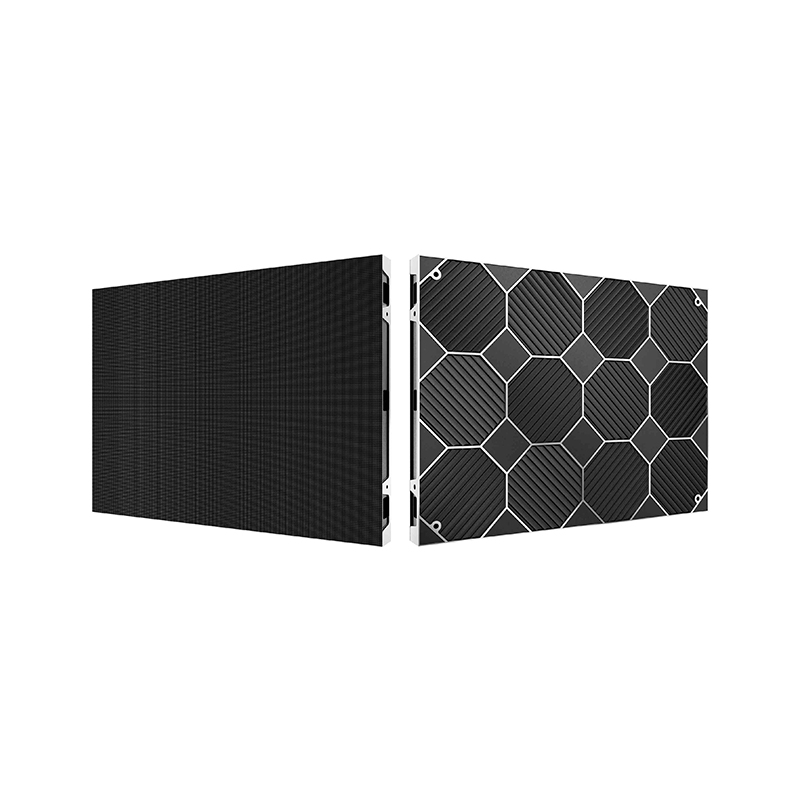

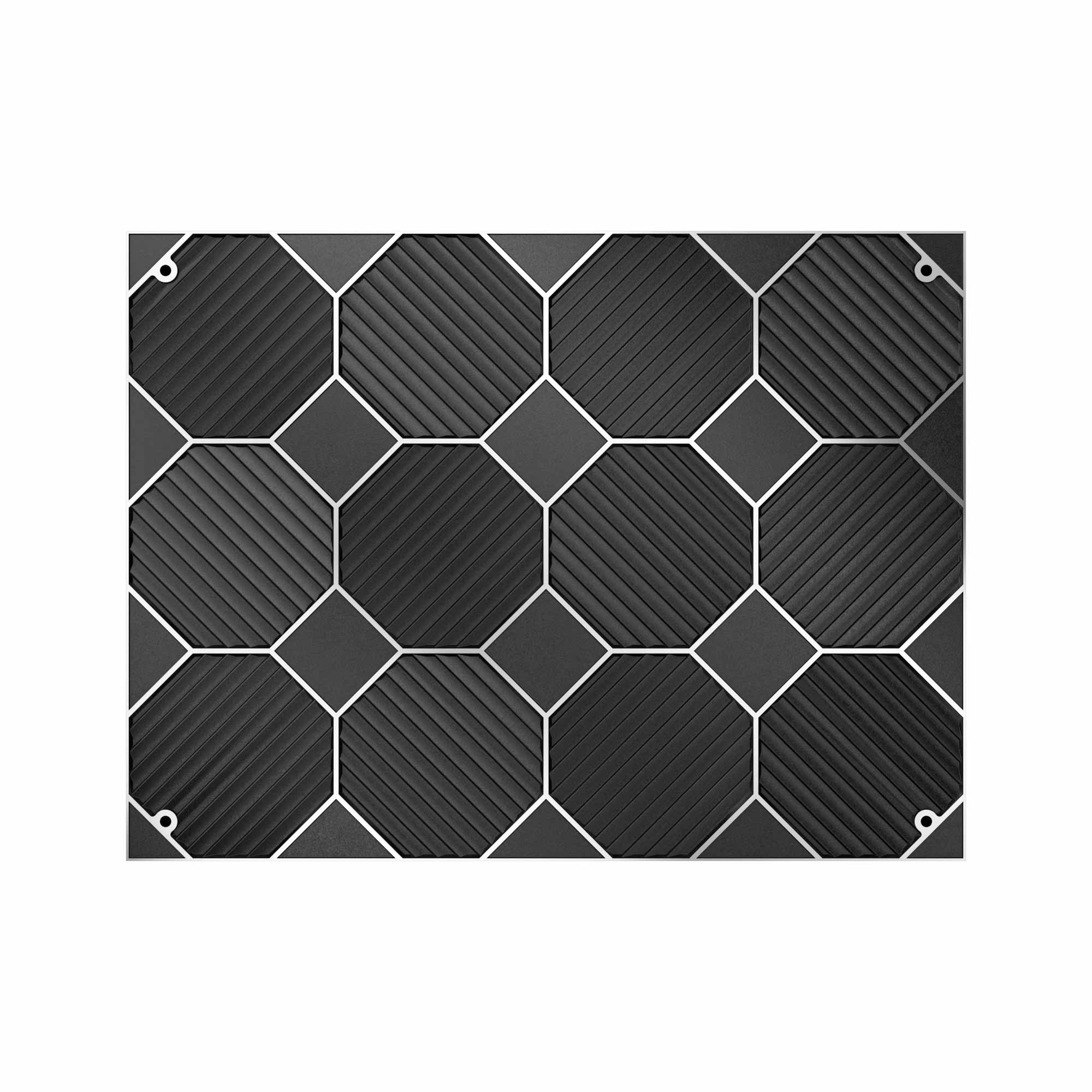

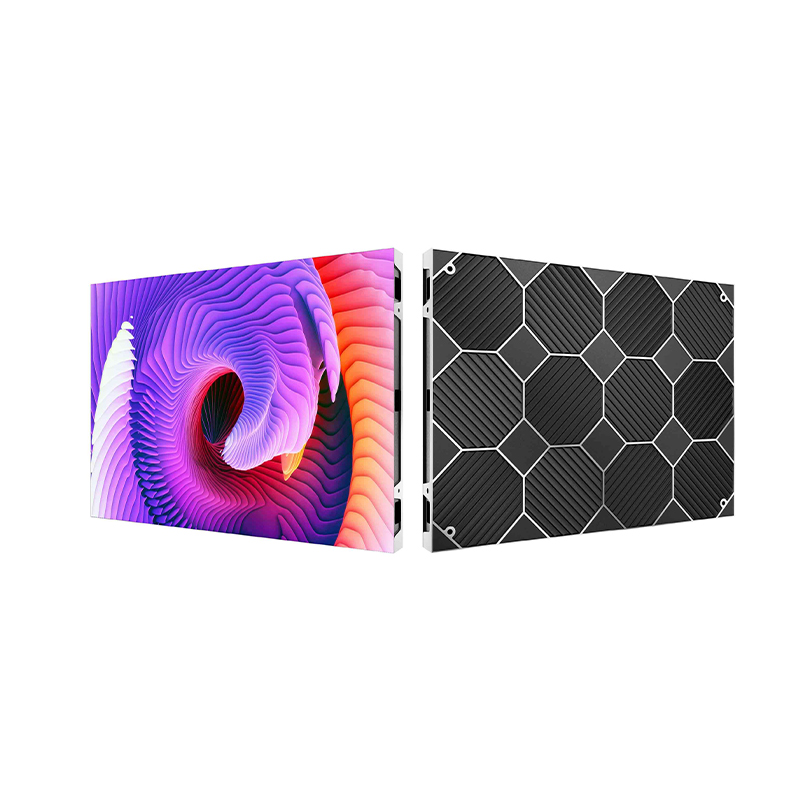

Product	LED Small Spacing Screen
Type	LED Screen K-series

APPROVE	CHECK	DRAW
Chief Engineer Office	R&D Department	Engineering Department
Zac	GYQ	ZZ
Version NO：V1.0
Release Date：2025.1.1

Product	LED Screen	LED Screen	LED Screen	LED Screen
Type	K1.25	K1.53	K1.86	K2.5

Physical Parameters

Size(Wide×High x Side)	64048032mm	64048032mm	64048032mm	64048032mm
Cabinet Resolution(Wide×High)	512*384	416*312	344*258	256*192
Scanning Mode	1/64	1/52	1/43	1/32
Horizontal/Vertical	≤120°/120°	≤120°/120°	≤120°/120°	≤120°/120°
Cabinet Weight	7.5Kg/PCS	7.5Kg/PCS	7.5Kg/PCS	7.5Kg/PCS
Input Signal Interface	RJ45	RJ45	RJ45	RJ45
Power signal interface	U-type terminal	U-type terminal	U-type terminal	U-type terminal
IP Rating	IP30	IP30	IP30	IP30

Optical Parameters

Brightness	≥400cd	≥400cd	≥400cd	≥400cd
Grayscale Level	≥13bit	≥13bit	≥13bit	≥13bit
Color Temperature	6500K～8500K	6500K～8500K	6500K～8500K	6500K～8500K
Contrast Ratio	≥4000:1	≥4000:1	≥4000:1	≥4000:1
Brightness Adjustment	Manual/Automatic/Remote	Manual/Automatic/Remote	Manual/Automatic/Remote	Manual/Automatic/Remote

Electrical Parameters

Working Voltage	AC：110V~220V	AC：110V~220V	AC：110V~220V	AC：110V~220V
Max Power	≤120W/ PCS	≤110W/ PCS	≤105W/	≤90W/PCS
Average Power	50-80W/PCS	30-45W/PCS	25-45W/PCS	20-40W/PCS

Performance Parameters

Refresh Rate	≥960-1920Hz	≥960-1920Hz	≥960*1920Hz	≥960-1920Hz
Frame Rate	60Frames	60Frames	60Frames	60Frames
Color Correction	quipped with point-by-point correction of brightness and chroma	quipped with point-by-point correction of brightness and chroma	quipped with point-by-point correction of brightness and chroma	quipped with point-by-point correction of brightness and chroma
Whole Screen loss of control point	≤0.003%，is set to 0 when shipped from the factory	≤0.003%，is set to 0 when shipped from the factory	≤0.003%，is set to 0 when shipped from the factory	≤0.003%，is set to 0 when shipped from the factory

Regional loss of control point	≤0.009%	≤0.009%	≤0.009%	≤0.009%
Screen Temperature Rise(Running State)	≤5°C	≤5°C	≤5°C	≤5°C
Compatible module to store data	Compatible module to store data	Compatible module to store data	Compatible module to store data	Compatible module to store data
Support electromagnetic compatibility	Support electromagnetic compatibility	Support electromagnetic compatibility	Support electromagnetic compatibility	Support electromagnetic compatibility
Support Redundancy Signal	Support Redundancy Signal	Support Redundancy Signal	Support Redundancy Signal	Support Redundancy Signal
Support Redundancy Power	Support Redundancy Power	Support Redundancy Power	Support Redundancy Power	Support Redundancy Power
Flatness	≥98%	≥98%	≥98%	≥98%
High voltage safety protection	leakage automatic protection	leakage automatic protection	leakage automatic protection	leakage automatic protection

Application Scenario

Working Temperature	-10℃～60℃	-10℃～60℃	-10℃～60℃	-10℃～60℃
Working Humidity	35％～75％RH，no condensation	35％～75％RH，no condensation	35％～75％RH，no condensation	35％～75％RH，no condensation
Application	Indoor	Indoor	Indoor	Indoor
