LED Dance Floor

LED Dance Floor

Chat Now Message Email

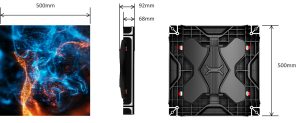

Cabinet Size

Cabinet-Size

Interactive

Equipped with built-in control chip and interactive system, 128/256 sensing points can be selected per square meter.More precise response, more sensitive response, and smooth interactive effect.

Strong Load-bearing

Professional customized high-strength die cast aluminum box with a load-bearing capacity of 2000kg/㎡, fearless of car crushing.

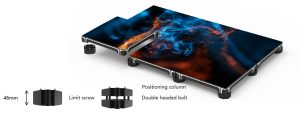

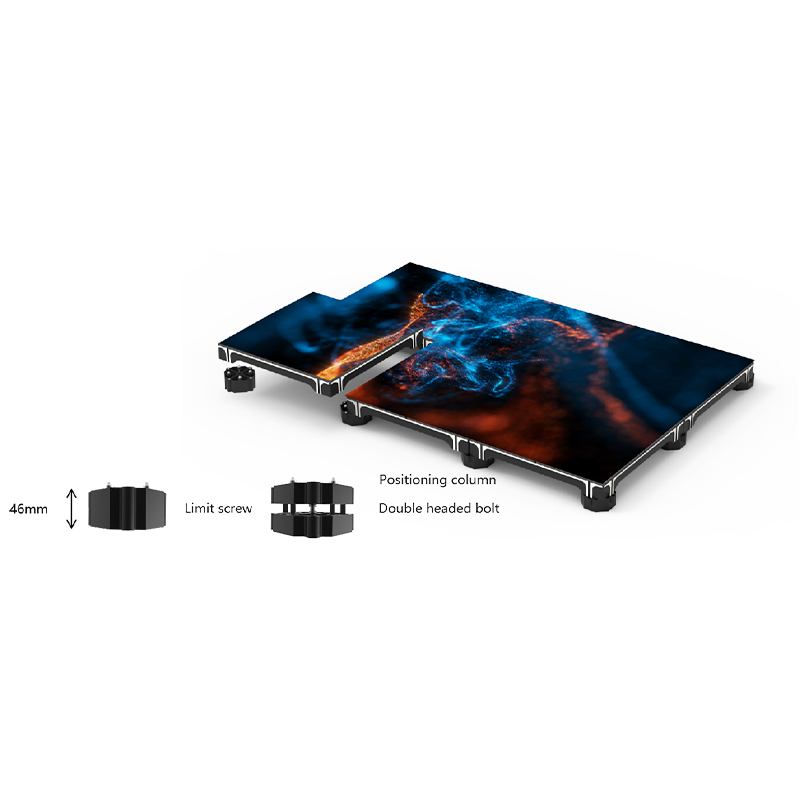

Express setup

Set up customized foot pads for laying, accurately correspond to the support angle to achieve horizontal positioning, and quickly assemble.
Customized adjustable feet with a height range of 15-20mm.

Express-setup

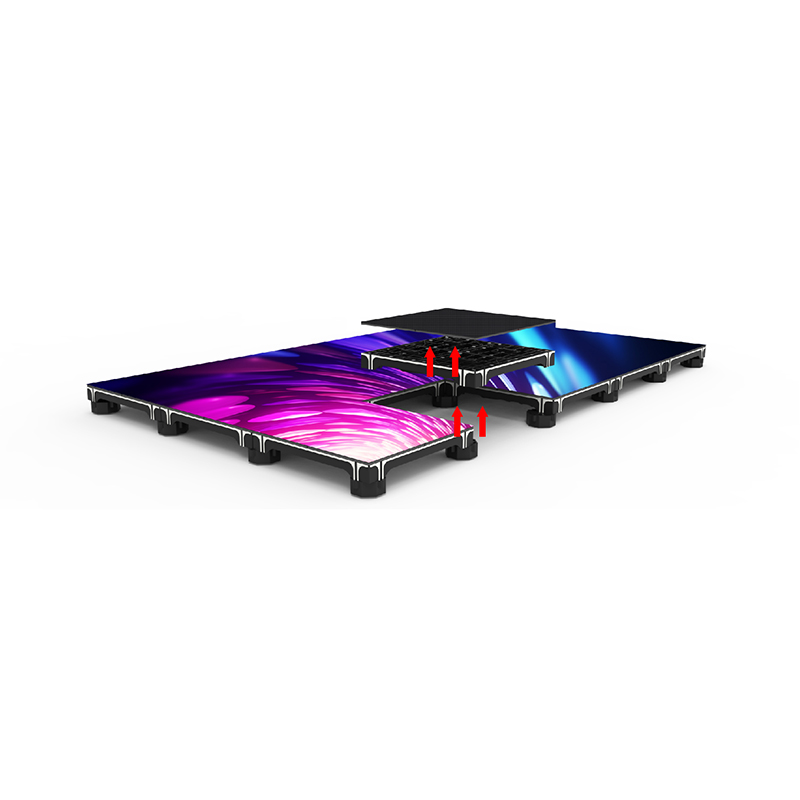

Fast Installation

The module adopts a magnetic pre maintenance design to achieve maintenance of the module, power supply, and receiving card, saving time and effort.

Fast-Installation

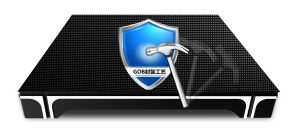

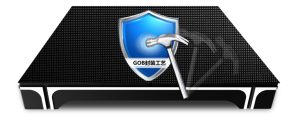

GOB protection

Adopting GOB technology, anti collision, moisture-proof, wear-resistant and easy to clean.

GOB-protection

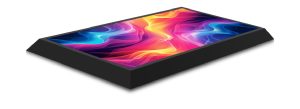

Support customization

We can add edging to the tile screen according to customer requirements to meet personalized needs.

Support-customization

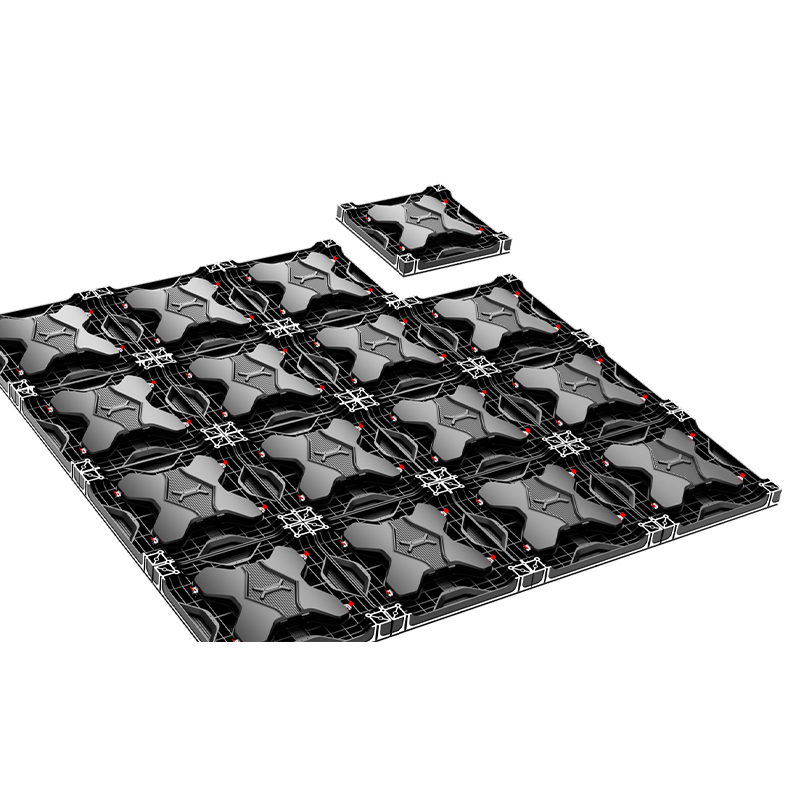

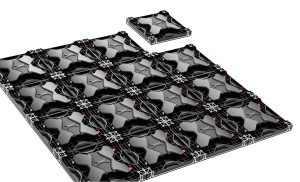

Seamless Splicing

High precision die cast aluminum casing Seamless splicing, natural and smooth.

Seamless-Splicing

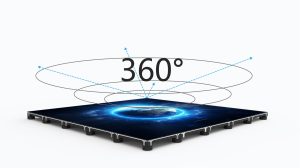

Full perspective

On site full perspective viewing ensures that every audience member can enjoy the ultimate visual experience. ‌

Full-perspective

Pixel Pitch	P1.56	P1.9	P2.5	P2.604	P2.976	P3.91
LED Type	MIP0606	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020
Physical Density(Dot/m²)	409600	262144	160000	147456	112896	65536
Module Resolution	160X160	128X128	100X100	96X96	84X84	64X64
Module Size(WXH)	250X250	250X250	250X250	250X250	250X250	250X250
Cabinet Size(mm)	500X500X92	500X500X92	500X500X92	500X500X92	500X500X92	500X500X92
Cabinet Resoluiton	320X320	256X256	200X200	192X192	168X168	128X128
Module Qantity (WXH)	2X2	2X2	2X2	2X2	2X2	2X2
Cabinet Weight(kg)	10.8	10.8	10.8	10.8	10.8	10.8
Maintenance Mode	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance

Material	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum
Brightness(Nits)	≥800	≥800	≥800	≥800	≥800	≥800
Color Temperature(K)	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional
Viewing Angle(V/H)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Contrast Ratio	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1
Frame Frequency	50/60	50/60	50/60	50/60	50/60	50/60
Drive Mode	1/32 scan	1/32 scan	1/20 scan	1/16 scan	1/14 scan	1/16 scan
Grey Scale	16bit	16bit	16bit	16bit	16bit	16bit
Refresh Rate(Hz)	3840	3840	3840	3840	3840	3840
Max Power Con.(W/m)	800	800	800	800	800	800

Ave Power Con.(W/m)	200-300	200-300	200-300	200-300	200-300	200-300
Protection Level	IP31	IP31	IP31	IP31	IP31	IP31
Power Input	AC90-264V,47-63Hz
Operation T/H(℃/RH)	-20~60℃/10%~85%
Storate T/H(℃/RH)	-20~60℃/10%~85%
Cert.	CCC/CE/RoHS/FCC/CB/TUV/IEC
