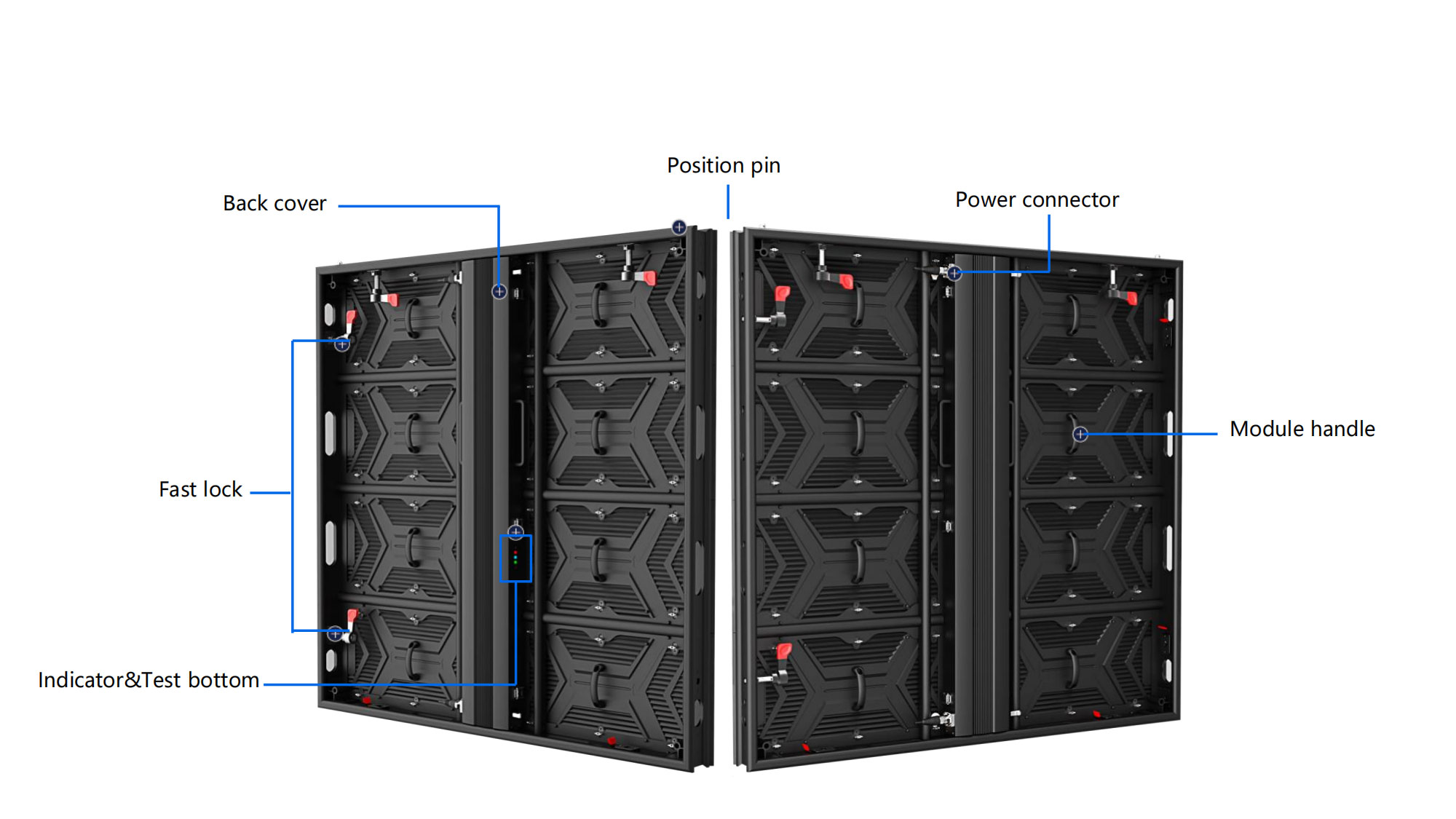

Profile 1000X1000mm

Profile 1000X1000mm

Chat Now Message Email

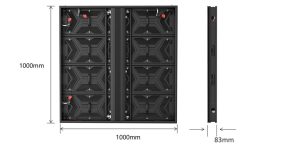

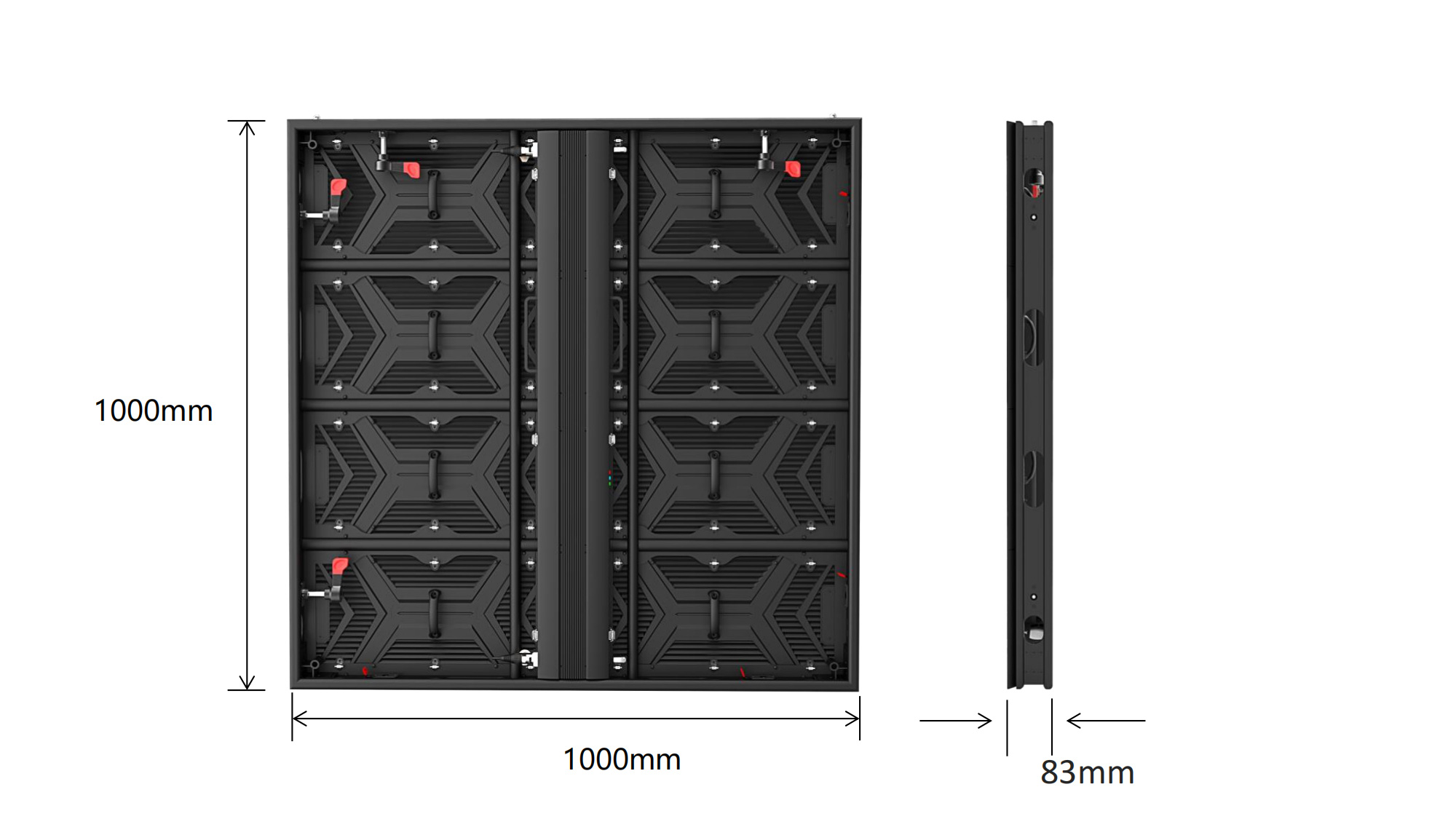

Dimension

BLC-Ti（1000X1000mm）03

Hot-swapping

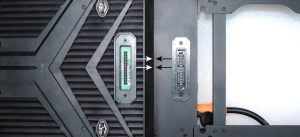

Hard connection supports full

front access.

Hard-connection-supports-full-front-access

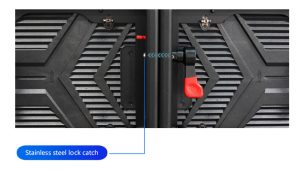

Fast installation

Stainless fast lock High precision aluminum alloy panelQuick assembly Good flatness.

Fast-installation

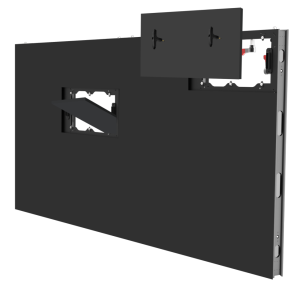

Full-front and Rear maintenance

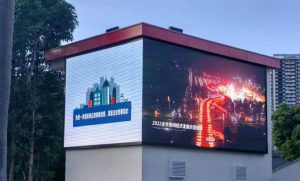

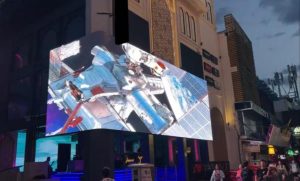

Creative styling

Support creative shapes such as right angles and corners, and 3D naked eye effects, bringing

you a stunning visual experience.

Creative-styling2 Creative-styling1

Excellent visual effect

High refresh rate, high contrast, and high grayscale, resulting in a more realistic and delicate

display with vibrant and saturated colors.

160 ° ultra wide viewing angle

Perfect presentation of images from any angle

Pixel	P2.976	P3.91	P4.81	P6.25	P7.81	P10.42
SMD Type Pitch	SMD1415	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Physical Density(dots/ml)	112896	65536	43264	25600	16384	9216
Medule Resclution	168X84	128X64	104X52	80X40	64X32	48X24
Mochule S2e (mm)	5000250	500X250	500250	500×250	500X250	500×250
Panel Dimension:WxH/mm)	1000X1000X83(customiable yo	1000X1000X83	1000X1000X83	10DCX1000X83	1000X1000X83	1000X1000X83
Panei Resoution	336X326	25682560	208X208		128X128	9896
Madule quantity:Wxh)	2X4	2X4	2×4	2X4	2X4	2X4
Panei Weght(g	22.5	22.5	22.5	22.5	22.5	22.5
Maintemante Mode	Front & Rear	Front & Rear	Front & Rear	Front & Rear	Front & Rear	Front & Rear

Cabret material	Ajuminum	Aluminum	Alumirum	Alminum	Aumium	Aluminum
Brightnessoaits,	4500	6000	6000	6000	6000	6000
Celorteenperature:k	5000-12000Optianal	5000-12000 Optional	5000-12000 0otianal	5000-12000Optional	5000-12000 Optional	5000-17000 Optioral
Viewing Ang e[HN)	140/150	142/150	140/760	140/160*	1407160*	140/160*
Best viewing distrance	3-100m	4-100m	4-100m	6-150m	8-150m	10-200m
Centrast Ratio	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1
Frame-changing Frequency(Hz;50/60	50/60	50/60	50/60	50/60	50/60	50/60
Drving Mode	1/21 Scan	1/16 Scan	1/13 Scan	1/8 Scan	1/4 Scan	1/2 Scan
Grvy Ievel	16bit	16bit	16bit	16bit	16bit	16bit
Retresh Rate (Hz)	3840	3840	3840	3840	3840	3840

Max power consumption(W/㎡)	800	650	650	650	650	650
Avg pener con semption(W/ai	200-300	100-200	I00-200	100-200	100 200	100-200
Grude	IP65	IP65	IP65	IP65	IP65	IP65
Power supply requirements	AC90-264V,47-63Hz
Working Temp/Humidity(℃/RH)	-20~60℃/10%~85%
Storage Temp/Humidity(℃/RH)	-20~60℃/10%~85%
Cert	CCC/CE/RoHS/FCC/CB/TUV/IEC
